Digital Mammography System

Mammograph product line

The perfect synthesis between excellent imaging technology and successful design made of modern and ergonomic lines: the new Italray MAMMOGRAPH product line represents the ideal solution to satisfy every diagnostic request for clinical mammography: from mammography to stereotaxic biopsy.

The different models available (from the analog mammograph MAMMOGRAPH to the digital one for 3D tomosynthesis: MAMMOGRAPH D-TOMO +) ensure the clinician productivity and high image quality, without forgetting at the same time attention to the patient, advantageous costs and use all the recent digital mammography imaging methods.

MAMMOGRAPH

The innovative mammograph for traditional analogue imaging. Implementable with the device for stereotaxic and tomo-guided biopsies. Upgradable with DR panels.

MAMMOGRAPH FFDM C+

For 2D image acquisition. It can be integrated with a wide range of accessories with unmatched performance-price specs.

MAMMOGRAPH FFDM+

For 2D image acquisition, fully upgradable to any digital method, also 3D. Implementable with a wide range of accessories including the device for stereotaxic and tomo-guided biopsies.

MAMMOGRAPH D-TOMO+

It can be configured for any type of mammography exam including tomosynthesis. It is easily upgradable with cutting edge biopsy techniques in tomosynthesis and contrast mammography.

MAMMOGRAPH Analog and Digital systems

Compression system

Motorized and manual compression system with safe release, and parameters visualization on lateral displays.

Isocentric C-arm

Motorized vertical movement and continuous motorized(*) rotation with pre-selectable angles, all breast positions can be inspected without having to move the patient.

Ingrandimento geometrico

Geometric magnification

Device for (x1.5 / x1.8 / x2) geometric magnification with automatic selection of small focus once fitted

Sicurezza Operatore

Anti-X Safety

Protective anti-x barriers for operator safety and polycarbonate screen to protect patient’s face

MAMMOGRAPH FFDM C + | FFDM + | D-TOMO +
Digital mammographs

Fluoroscopy room

Image quality

Very high image quality thanks to enhancement algorithm for mammographic images.

Tomosintesi

Digital breast tomosynthesis

Increase mammogram diagnostic content with a detailed 3D reconstruction.

Productivity

Totally, microprocessor controlled digital mammography system; its asymmetry facilitates the operator both in accessing the controls and in controlling the patient.

Low dose

Digital detectors with high DQE for a significant dose reduction compared to conventional systems.

DICOM 3.0

Interfacing with any RIS, with PACS archiving systems and with DICOM printers.

Compression system

  • Adjustable manual and motorized compression with safety release
  • Progressive reduction of compression speed for greater patient comfort
  • Adjustable compression force and thickness shown on touch screen displays
  • Special function for 0 N compression force for oncology procedures

ISOCENTRIC “C” ARM

  • Motorized vertical movement
  • Continuous motorized(*) rotation with programmable projections
  • Two touch screen 7” colour displays with info about compression, patient, exam and ACR code;
  • Usable for Stereotactic Biopsy in combination with the dedicated SBD accessory
Braccio a C isometrico motorizzato
Stazione di acquisizione

ACQUISITION STATION (AWS)

  • Image acquisition station, with integrated x-ray button and 2, 3 or 5 MP medical grade monitor
  • Integrated acquisition workstation: a compact, high-performance configuration, dedicated for complex and mobile installations
  • Optional separate acquisition workstation with integrated anti-X protective barrier

AUTOMATIC CONTROL OF EXPOSURE

  • Applied basing on breast density or compressed breast thickness (for patients with prothesis)
  • Device for the calculation and visualization of the Average Glandular Dose (AGD)
Exposure controlled with italray's Digital mammography system

Extremely low dose

Superb image quality

Low dose on digital mammography system

HIGH FREQUENCY GENERATOR

(100 kHz)

X-RAY TUBE WITH 2 FOCAL SPOTS

RHODIUM/SILVER/ALUMINUM/COPPER FILTERS

(a-Se/a-Si) Digital detector with 16 bit conversion

complete digital mammography system optimized for 3D tomosynthesis

DIGITAL BREAST TOMOSYNTHESIS

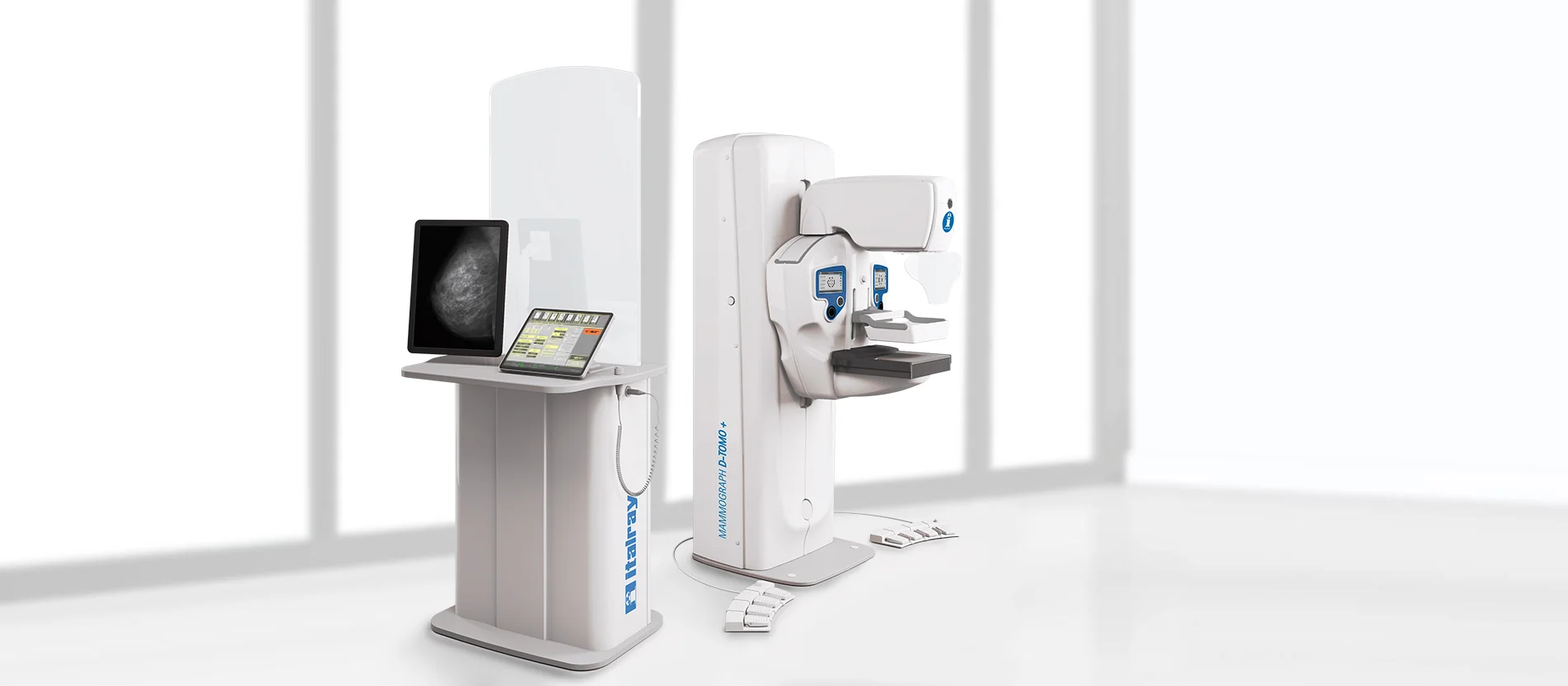

  • Mammograph D-TOMO+ complete digital mammography solution optimized for 3D tomosynthesis
  • Conventional mammography with a 24×30 cm detector with Amorphous Selenium technology for direct conversion
  • Tomosynthesis scan
  • Conventional mammography and tomosynthesis scan during breast compression procedure

MAMMOGRAPH FFDM C + | FFDM + | D-TOMO +
Digital mammography workstation for review and screening

1

Customized mammographic specific reading and hanging protocols for both screening and diagnostic study interpretation

2

“One-click” workflow-streamlines reading from opening a study to generate a report

3

Streamlined comparison between current exams and multiple previous exams

4

Automatic alignment and scaling of images

5

Navigation by mouse wheel to view full-resolution image

6

Automatic Mammography Reporting System

(*)Optional for analogic version
